C wave band net shape satellitle antenna
C wave band satellite antenna

C's wave band satellite antenna technique parameter

diameter 1.5M 1.8M 2.0M 2.4M 3.0M 3.2M
section diameter 150 180 200 240 300 320
focus 570 682 760 915 1050 1120
Cplus@4.0GHZ 34.20 36.36 37.23 38.39 39.7 40.89
elevation ajust 0-90 25-65/0-90 0-90 0-90 15-90 15-90
azimuth adjust 0-360 0-360 0-360 0-360 0-360 0-360
efficiency 70% 75% 70% 70% 70% 70%
focus/diameter proportion 0.38 0.37 0.38 0.38 0.35 0.35
colour hoariness hoariness hoariness hoariness hoariness hoariness
standard fixation G/P/W/PM G/P/W/PM G/P/W G/P/W/PM G G
fixation diameter 45-75 75 75 75 75 -
surroddings temperature -40ºC-60ºC -40ºC-60ºC -40ºC-60ºC -40ºC-60ºC -40ºC-60ºC -40ºC-60ºC
comparatively
temperature		 0-100% 0-100% 0-100% 0-100% 0-100% 0-100%
suttle 21.5kg 29.0kg 45.0kg 62.5kg 146kg 166.0kg
material iron iron iron iron iron iron

C wave band net shape satellitle antenna

Calibre
 1.5M
1.8M
2.0M
2.4M
Calibre of plate
150
180
200
240
Focal length
 570
682
760
 915
C gain @4.0GHZ
34.20
36.36
37.23
38.39
Elevation angle adjust
 0-90
25-65/0-90
0-90
0-90
Position adjust
0-360
0-360
0-360
0-360
Efficiency
 70%
75%
 70%
70%
Focus/diameter proportion
0.38
0.37
0.38
0.38
Color
black
black
black
black
Standard fixation
G/P/W/PM
G/P/W/PM
G/P/W
G/P/W/PM
Fixation diameter
 45-75
75
75
75
Surroddings temperature
-40oC-60oC
-40oC-60oC
-40oC-60oC
-40oC-60oC
Comparatively
temperature
0-100%
0-100%
0-100%
0-100%
Suttle
14kg
17kg
  22kg
26kg
Material
Iron
Iron
Iron
 Aluminium

0.6M 0.75M
Offset-fed unidirectional aerial
0.9M 1.2M
Offset-fed unidirectional aerial
1.5M 1.8M
Offset-fed unidirectional aerial

The technique parameter is halt to the offset-fed one-way

Caliber 0.35M 0.45M 0.6M 0.75M 0.9M 1.2M 1.5M 1.8M
With prejudice Jiao Jiao 24.62 24.62 22.75 22.75 24.62 24.62 24.62 24.62
Winding starts to talk the path 35*38.5 45*51 60.0*65.0 75.0*81.3 90.0*99.0 120*132 150*165 180*198
Focal length 210 270 393 492 540 720 900 1080
KU's gain @12.5GHZ 32.08 34.23 36.67 38.52 40.32 43.32 44.26 46.76
Angle of elevation degree regulation 17.40 20-52/
10-80		 10-80/
23-90		 10-80/
23-90		 25-27/
17-90		 25-27/
17-90		 25-27/
17-90		 25-27/
17-90
Azimuth adjustment 0-360 0-360 0-360 0-360 0-360 0-360 0-360 0-360
Usefulness 75% 75% 75% 75% 70% 70% 70% 70%
Focal length /'s diameter proportion 0.6 0.6 0.65 0.65 0.6 0.6 0.6 0.6
Colour It is ashen It is ashen It is ashen It is ashen It is ashen It is ashen It is ashen It is ashen
Criterion admittedly fiing style G/P/W G/P/W G/P/W G/P/W G/P/W G/P/W/PM G/P/W/PM G/P/W/PM
Admittedly stably Guan Jing 25-48 25-48 32-48/60 32-48/60 32-60 45-75 45-75 45-75
Environment temperature -40ºC~60ºC -40ºC~60ºC -40ºC~60ºC -40ºC~60ºC -40ºC~60ºC -40ºC~60ºC -40ºC~60ºC -40ºC~60ºC
Relative humidity 0-100% 0-100% 0-100% 0-100% 0-100% 0-100% 0-100% 0-100%
Dry weight 3kg 4.5kg 5.5kg 7.8kg 11kg 17.0kg 37.5kg 58.5kg
Material character - - Iron Iron Aluminium Aluminium Aluminium Aluminium

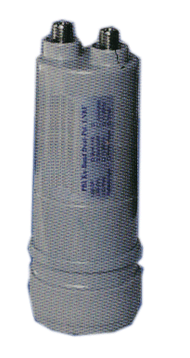

 LNB：

Ku's wave band bipolar is alone outputed
Make a present of the integration high frequency head in source
Ku's wave band bipolar is alone outputed and is makeed a present of the integration high frequency head in source
Import frequency range H:10.75-11.75GHz Local oscillation frequency degree of stability ±1.0MHz@25ºc
V:11.75-12.75GHz ±1.0MHz@-40ºc-+60ºc
Noise factor 0.5dB(Tpy.) Phase noise -80dBc/Hz(1KHz Offset)
Transformation raises 68dB(Tpy.) -90dBc/Hz(10KHz Offset)
Raise even degree ±0.5dB/27MHz -110dBc/Hz(100KHz Offset)
F/D's rate 0.6 Export frequency range 950-1750MHz
Make a present of the source shape Offset-fed Output level 5dB(Min.)
Cross polarization degree of segregation 25dB(TPY) Export return loss 7.5dB
The mirror one another represss 45dB(Min.) Output interface H:75 hit F Type Female
Input interface WR-75's waveguide V:75 hit F Type Female
Local oscillation frequency 11.00GHz Direct current work electric current 200mA(Max.)
Extremity transformation tension V:10-14v  H:15-19V Work temperature -40ºc-+60ºc

The project is outputed in the way of C/Ku's bipolar four
Make a present of the integration high frequency head in source
Commercial C's wave band bipolar is alone outputed and is makeed a present of the integration high frequency head in source
inputfrequency 3.4-4.2GHz Even obtainning ±0.75dB/36MHz
output frequency 950-1750MHz Output V.S.W.R 2.5:1
Stability ±2MHz(-30ºc-+70ºc) Work temperature -30ºc-+70ºc
Extremity SWITCHED H and V Tension 10-14.5V(V)  15.5-25V(H)
Transformation obtains 65dB(TYP) inputconnection WAVE GUIDE WC-229
17ºc Output connection utensil "F"±TYPE FEMALE 75 hits

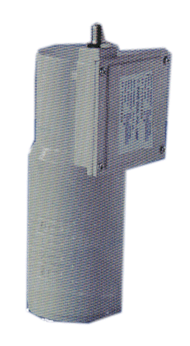

Commercial C's wave band bipolar is alone outputed
Make a present of the integration high frequency head in source
Commercial C's wave band bipolar is alone outputed and is makeed a present of the integration high frequency head in source
inputfrequency 3.4-4.2GHz Even obtainning ±0.75dB/36MHz
output frequency 950-1750MHz Output V.S.W.R 2.5:1
Stability ±2MHz(-30ºc-+70ºc) Work temperature -30ºc-+70ºc
Extremity SWITCHED H and V Tension 10-14.5V(V)  15.5-25V(H)
Transformation obtains 65dB(TYP) inputconnection WAVE GUIDE WC-229
17ºc Output connection utensil "F"±TYPE FEMALE 75 hits

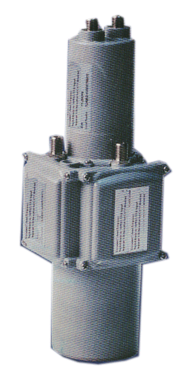

The project is in the way of C's twin export of wave band
Make a present of the integration high frequency head in source
The integration high frequency head in source is makeed a present of in the way of C's twin exports of wave band to the project
Export frequency 3.4-4.2GHz Power supply 10-24V DC，200mA(MAX)
Import frequency Twin export 950-1750MHzs' ( acing as the HP all the journey ，Output moreover in the interest of perpendicular polarization all the journey ）
Local oscillation frequency 5150MHz Work temperature -30-60°C
Noise temperature 17°K Bulk 185mm*125mm*170mm
Gain 65dB Weight 650g
Mirror image degree of repressing 45dB(MIX) Coil out joins 75 hit F's mould
The coil out tension standing wave contrasts 2.0:1(MAX) - -

Project Ku's wave band bipolar special
The integration high frequency head in source makeed a present of in twin exports
The integration high frequency head in source makeed a present of in project only Ku's wave band twin exports of bipolar
Import frequency 12.25-12.75GHz 1DB's gain compression some output power ： 0.0dBm(MIN)
Export frequency Twinly output 950-1450MHz's ( all the journey polarization ，In immediate future another route is that the perpendicular polarization is outputed moreover ） Cross degree of segregation 25dB(MIN)
Local oscillation frequency 11.3GHz Spurious output -60dBc(MAX)
Local oscillation degree of stability ±500KHz The coil out tension standing wave contrasts 2.0:1(MAX)
Local oscillation phase noise -70dBc/Hz(@1KHz) The polarization means is chooseed HP and perpendicular polarization is leaveed each other and is outputed moreover
-90dBc/Hz(@1KHz) Power supply 10-24V DC，200mA(MAX)
-120dBc/Hz(@1KHz) Work temperature -30-60°C
Noise factor 0.7dB Bulk 145mm*60mm*55mm
Gain 65dB Weight 200g
Raise even degree ±0.5dB/24MHz - -
  Receiver：

Satellite radio
Satellite radio technique target
High frequency head /'s tuner Radio frequency import frequency 950-2150MHz
Radio frequency incoming level -65~25dBm
The high frequency head is dominateeed DiSEqC1.0
High frequency head sound is accuseeed the button 13V/18V(Max,400mA)
High frequency head sound is accuseeed the button 22K±2KHz(0.6Vp-p)
Outwardly joins the high frequency head button 0/12V（100mA)
Demodulator Wave pattern QPSK(scpc,Mcpc,Capable)
Sign rate 1-45Msps
output frequency Max,55Mbps
MPEG transfers flux MPEG-II
input frequency Max.55Mbps
video frequency M-II Main Profile@lev
audio frequency M-II layer I&II
Video frequency Strenuously rate differentiateing 704*576
Video output level 1Vp-p Into 75 hits
Aspect ratio 4:3 ,16:9
Audio frequency Frequency range 5Hz-5MHz
Take a sample frequency 332/44.1/48KHz
Frequency response 20Hz-2.KHz Hi-Fi
Audio frequency output level 2V Rms Into 10 thousand hits
Ordinary parameter Provide tension 100-240V，AC，50/60Hz
Work loss Max.25W(standby 15W)
Work temperature 0-50's ℃
Storage temperature - 40~65's ℃

Wei Shi button - four move forward one

Wei Shi is button - SW-03/P

Wei Shi is button - SW-03/Q

Wei Shi is button - SW-03/T

Wei Shi is button - SW-01/E

Wei Shi is button - MS-2301

Two meritorouss service branch utensils

Four meritorouss service branch utensils
