rated voltage 0.6/1KV,
cross linking polythene insulated power cable,
PVC insulated power cable |
Type |
Name of product |
Scope of production |
Performance norm |
No.of core |
section area mm2 |
rated voltage |
VV、VLV |
Cu-Al core PVC insulated and PVC sheathed cables |
1 |
1-800 |
0.6/1KV |
GB/T12706
-2002
GB12666
-90
(IEC332-3
|
YJV、YJLV |
Cu-Al core cross linking PVC insulated and PVC sheathed cables |
4-300 |
ZR-VV、ZR-VLV |
Cu-Al core PVC insulated and PVC sheathed cables fire-retardent power cables |
2 |
4-300 |
NH-VV |
Cu core PVC insulated and PVC sheathed fire-resistant power cables |
3 |
4-300 |
ZRE-VV |
Cu core PVC insulated, low smoke ,non-halogen,fire-resistant sheathed power cables |
4 |
4-300 |
VV22、VLV22 |
Cu-Al core PVC insulated,steel tape armored PVC sheathed power cable |
5 |
4-300 |
YJV22、ZR-VLV22 |
Cu-Al core cross linking PVC insulated,steel tape armored PVC sheathed power cable |
3+1 |
4-300 |
ZR-VV22、ZR-VLV22 |
Cu-Al core PVC insulated,steel tape armored PVC sheathed fire-resistant power cable |
3+2 |
4-300 |
NH-VV22 |
Cu core PVC insulated,steel tape armored PVC sheathed power cable |
4+1 |
4-300 |
ZRE-VV22 |
Cu core PVC insulated,steel tape armored PVC sheathed power cable |
|
|
3.6/6KV-26/35KV
cross linking polythene insulated power cable |
Type |
Name of product |
Voltage grade
（KV) |
No.of core |
|
Performance norm |
| YJV
YJLV |
Cu-Al core cross linking XLPE insulated PVC sheathed power cable |
3/3.6-26
/35 |
1
3
|
1.5-1200
1.5-300
|
GB/T1270
6-2002 |
ZR-YJV
ZR-YJLV |
Cu-Al core cross linking XLPE insulated PVC sheathed fire-resistant power cable |
YJY
YJLY |
Cu-Al core cross linking XLPE insulated PVC sheathed power cable |
ZR-YJY
ZR-YJLY |
Cu-Al core cross linking XLPE insulated PVC sheathed fire-resistant power cable |
YJV22
YJLV22 |
Cu-Al core cross linking XLPE insulated,steel tape armored PVC sheathed power cable |
ZR-YJV22
ZRYJLV22 |
Cu-Al core cross linking XLPE insulated,steel tape armored PVC sheathed fire-resistant power cable |
YJV23
YJLV23 |
Cu-Al core cross linking XLPE insulated,steel tape armored PVC sheathed power cable |
ZR-YJV22
ZRYJLV22 |
Cu-Al core cross linking XLPE insulated,steel tape armored PVC sheathed fire-resistant power cable |
|
|
rated voltage 450/750V,
XLPE 、PVC
insulated control cable |
Type |
Name of product |
Scope of production |
rated voltage |
Performance norm |
No.of core |
section area mm2 |
KVV |
Cu core PVC insulated PVC sheathed control cable |
1 |
4-63 |
450/
750V |
GB9330
-88
GB12666
-90
|
KYJV |
Cu core cross linking PVC insulated PVC sheathed control cable |
KYJE |
Cu core cross linking PVC insulated low smoke ,non-halogen fire-resistant sheathed control cable |
ZR-KW |
Cu core PVC insulated PVC sheathed fire-resistant control cable |
NH-KVV |
Cu core PVC insulated PVC sheathed fire-retardent control cable
|
1.5 |
4-63 |
KVVP |
Cu core PVC insulated PVC sheathed screen control cable |
2.5 |
4-63 |
KYJVP |
Cu core cross linking PVC insulated PVC sheathed screen control cable |
KYJEP |
Cu core cross linking PVC insulated low smoke ,non-halogen ,fire-resistant sheathed screen control cable |
NH-KVVP |
Cu core PVC insulated PVC sheathed screen fire-resistant control cable |
4 |
4-14 |
NH-KVVP |
Cu core PVC insulated PVC sheathed screen fire retardent control cable |
KVV22 |
Cu core PVC insulated steel tape armored PVC sheathedcontrol cable |
6 |
4-14 |
KYJV22 |
Cu core cross linking PVC insulated steel tape armored PVC sheathed control cable |
KYJE22 |
Cu core cross linking PVC insulated low smoke ,non-halogen fire-resistant steel tape armored control cable |
ZR-KVV22 |
Cu core PVC insulated steel tape PVC sheathed fire-resistant control cable |
10 |
4-14 |
NH-KVV22 |
Cu core PVC insulated steel tape PVC sheathed fire retardent control cable |
|
|
aerial overhead cable
rated voltage equal or under 1KV |
|
|
|
|
|
|
|
|
Cu core PVC insulated overhead cable
|
1
2
4
3+K |
16-240
10-120
10-120
10-120
|
|
GB12527
-90
Q/12BJ4881
-2001
|
JKLV |
Lead core PVC insulated overhead cable
|
JKLHV |
Aluminium alloy core PVC insulated overhead cable
|
JKY |
Cu core XLPE insulated overhead cable
|
JKLY |
Al core XLPE insulated overhead cable
|
JKLHY |
Aluminium alloy core XLPE insulated overhead cable
|
JKYJ |
Cu core cross linking XLPE insulated overhead cable
|
JKLYJ |
Al core cross linking XLPE insulated overhead cable
|
JKLHYJ |
Aluminium alloy core cross linking XLPE insulated overhead cable
|
JKLGYJ |
Steel core Al twisted wire core cross linking XLPE insulated overhead cable |
|
|
rated voltage 10KV、35KV
aerial overhead cable |
|
|
|
|
JKYJ |
Cu core cross linking XLPE insulated overhead cable
|
|
|
JKLYJ |
Lead core cross linking XLPE insulated overhead cable
|
JKY |
Cu core XLPE insulated overhead cable
|
JKLY |
Al core XLPE insulated overhead cable |
JKLYJ/Q |
Al core light cross linking XLPE insulated overhead cable
|
JKLY/Q |
Al core light XLPE thin insulated overhead cable
|
JKLGYJ |
Steel core Al twisted wire core cross linking XLPE light thin insulated overhead cable
|
JKLGY |
Steel core Al twisted wire core XLPE light thin insulated overhead cable
|
|
|
|
Electric anchor clamp
： |

JXGF hanging clamp |
JJC insulating puncture clamp |
JNL overhead insulating wedge-shaped clamp |
JBL insulating parallel groove clamps |
|
|

NLL series Al-alloy clamps
|
NLL series Al-alloy clamps |
J10FKL2 Al embranching clamps |
insulating clamps |
|
|

DT series copper wieing terminals
|
DTL secies copper-alnnecting terminals |
copper open wiring treminals |
GT series copper connecting tube |
|
|

SLG，SL series Cu-Al clamps |
SBJ series copper pole clamp
|
SBG screw clamp |
SY(T)series Cu compressed clamps |
|
|

TL series bolt T-connector |
TY series compressed
T-connector |
swallow-tail-shaped connector |
indraught copper C connector |
|
|

JBK copper-Al expansive clamp（Beijing type） |
JBK Al expansive clamp(Shanghai type) |
JB-TL parallel groove clamps |
cling ring QP type |
|
|
Iron appliance in communication & electric aerial wire setup： |

integrative lacunaris pipe series
|
integrative lacunaris pipe series:
(1) ZNPE verticle burying lanaris plastic pipe；
（2）RPPE soft tray pipes；
（3）PE verticle burying lanaris pipess；
Integrative lacunaris pipe series products has good compatibility and practicability，proper for the traverse of many cables such as electric cable,coaxial cable,PCM cable etc. They are widely used in inside communication in telecom,televise,train station,army,institution&academy, large-scale and medium-scale industrial mineral enterprises.The raw material is mainly PE,suitable in the temperature of -40℃ to 80℃.
|
|
Name of product |
specification of aperture |
thickness |
allowance |
remark |
|
ZMPE
(verticle burying)
|
5-hole |
insideф32（5) ф28
（5)ф26（5) |
2.5 |
±0.5 |
fixed length by factory:6m |
|
7-hole |
|
2.5 |
±0.5 |
|
RPPE
(soft tray)
|
3-hole |
outsideф76.5
insideф41（1) ф28（2)
|
2.2 |
±0.5 |
max length:200m |
|
4-hole |
outsideф76.5
insideф32(2)ф25.5(2)
|
2.2 |
±0.5 |
|
5-hole |
outsideф76.5
insideф25.5 |
2.2 |
±0.5 |
|
|

pull ring |
take-up |
removing buckle |
telephone wire |
|
|

heat contracting tube.、ventilate tube |
wire-sending pulley |
perforator |
C type cable junction box
（4 input 4 output） |
|
|

clamp |
bolt |
expansile screw |
cable junction box |
|
|

n-shape curve plate、parallel extensive electro |
allaround fixer、n-shape curve iron plate |
terminal connector |
ladder-shape wire-sending bracket |
|
|
High-voltage insulator: |
Composite insulators for the high-voltage line at 10~500kv
 Fine hydrophobicity reaches class HCI
|
There are the products Reliable sealing performance
1、The sheds and the sleeves are produced with the full automatic jet molding technology.
2、The anchor clamp is specially notched and the thickness of notch keeps consistent to prevent point discharge.
3、The anchor clamp is compacted with the impacting technology at internationally advanced level.
4、The zinc-oxide coating is applied to the anchor clamp with the hot dip galvanizing technology with lanthanide aluminum to prevent the falloff as compacting.。
5、Owing to the advanced compacting technology, all the breaks just happen to the round head rods at the destructive test of sampling performed by customers.
6、The theory of aerodynamics is adopted to the design of the shed.
7、The thickness of the sleeve>=5mm with a consistent thickness, reaching the international standard of IEC.
8、The ECR high temperature strengthened acid-resistant core rod is applied.
9、The top is sealed with the high-pressure injection sealing technology with the high temperature sulfidation glue to perform three-coat protection and make the sealing performance of the anchor clamp top more reliable.
10、The hydrophobicity of the products made of imported raw materials reaches class HC1 |
|
|
|
|
Creativeness and progress of the products
１、An advanced jet molding technology is applied.
２、The two-stage sulfuration of half-finished products is applied to with the calefactive,homothermal and hypothermal full-numerical temperature-control technology.
３、The anchor clamp of the top head is assembled with the compacting way to meet the internationally advanced technology.
４、The high-temperature and high-pressure sulfurated silicon-rubber sealing technology is applied to the top head sealing and its technique reaches the domestic top level.
5、The arm is made of steel or stainless steel compound material produced with the advanced metallurgic compound technology. The anticorrosion property and appearance quality of the parts are much improved.
6、The arm unit of the silicon-rubber insulator got the national patent
|
|
|
Organic zinc-oxide sleeve lightning arrester
 linghtning arrester
|
Features of the lightning arrestors
１、Fine protective property；
２、Large capability of circulation；
３、Fine resistance to soiling and weathering；
4、 Special sealing structure；
5、 The silicon-rubber sleeve can prevent vital accidents of explosion.
|
|
|

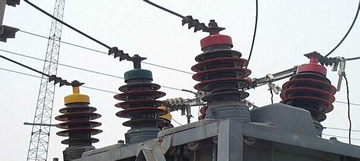

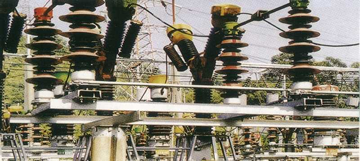

Silicon-rubber creepage extension shed
|
|
|
